Touch Screen Display Interactive Panel For Classroom 75inch 4K

Product Categories
Dongguan Ikinor Technology Co., Ltd.
Contact Now

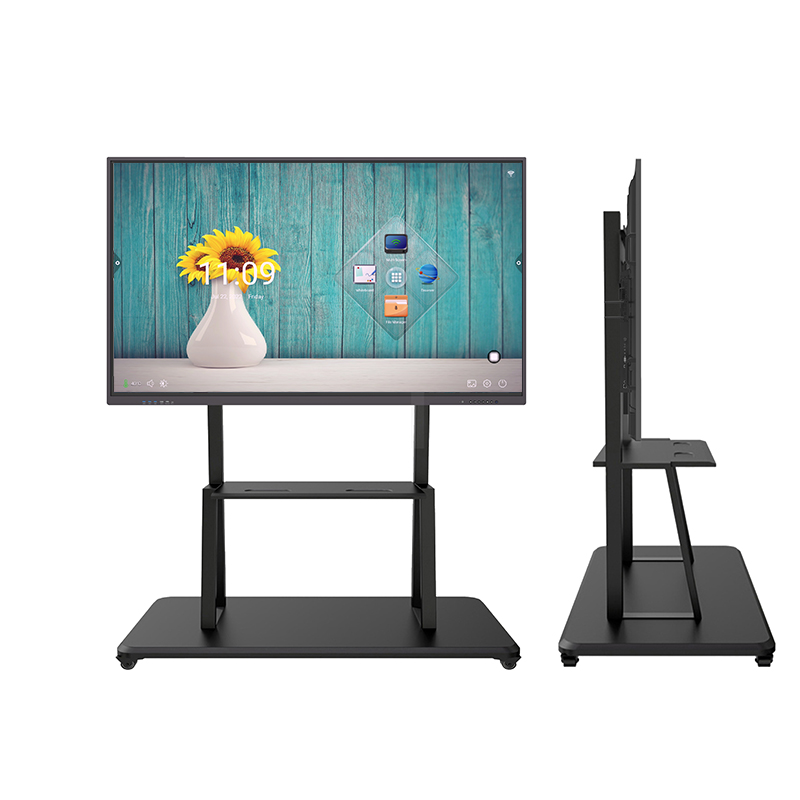

Touch Screen Display Interactive Panel For Classroom 75inch 4K

  • 1
  • 2

Brand Name : Ikinor

Model Number : IK75

Certification : CE/FCC/ROHS

Place of Origin : China

MOQ : 1

Price : $739-$1399/pc

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5K/month

Delivery Time : 10-15 working day

Packaging Details : Carton packing

Product name : 4K Display 75inch

Panel Size : 75 inch

Ratio : 16:9

LED type : DLED

Touch type : Infrared

Brightness : Up to 380cd/m2

Contact Now

Digital Whiteboard 4K Display 75inch Interactive Panel Multi Touch Screen Smart Board

Instead of traditional television, users can see the program online directly or connect with HDMI or AV port.

Used as a computer with touchable function, you can download many applications in it by yourself.

Touch Screen Display Interactive Panel For Classroom 75inch 4K

No need projector can cast the screen. Interactive whiteboard software in it for convenient teaching and meeting.

The built-in speaker can play sound, with volume controls directly on the front of the interactive flat panel.

Touch Screen Display Interactive Panel For Classroom 75inch 4K

Product Paramenters

Diagonal display size 65" 75" 86" 98" 110"
Bezel color Aluminum frame(Silver color) √ √ √ √ √
Back Light Direct type LED √ √ √ √ √
Active area (mm) (H) * (V) 1428.48 * 803.52 1649.66 * 927.93 1895.04 * 1065.96 2158.85 * 1214.35 2436.48 * 1370.52
Resolution 3840*2160 /UHD √ √ √ √ √
Aspect Ratio 16:9 √ √ √ √ √
Contrast Ratio 1200:1/4000:1 √ √ √ √ √
Colors 1.07 billion colors √ √ √ √ √
Brightness 350cd/m2 √ √ √ √ √
Viewing angle 178° √ √ √ √ √
Glass hardness Mohs-7 level √ √ √ √ √
Screen surface 4mm thickness Anti-Glare glass √ √ √ √ √
Panel Interactivity
Touch technology IR touch √ √ √ √ √
Touch points 20 points (Win 7/8/10)
10 points touch (Android)		 √ √ √ √ √
Touch accuracy ±2mm(Windows) √ √ √ √ √
Recognition Finger or passive stylus √ √ √ √ √
Response Rate <4ms(single touch)
<10ms(max touch inputs)		 √ √ √ √ √
Minimum object size 2mm √ √ √ √ √
Response Time <5 ms √ √ √ √ √
System support Win10/Win8/Win7/Mac OS
/Android/Chrome OS/Linux		 √ √ √ √ √
Front side Connectivity
Front ports USB3.0 * 3 lines (Public for both Android & PC) ; Touch out USB B type * 1 line; HDMI in 2.0 * 1 line; Type C* 1 Line
Front Button Indicator: Red/Blue; Buttons:Screen Record; Image Aspect Ratio; V-; V+; Setting ; Eye Protect; Power
Front speaker 10W*2
Rear side Connectivity
USB 2.0 Type A 2 √ √ √ √ √
Touch USB 2.0 Type A 1 √ √ √ √ √
HDMI in 2 √ √ √ √ √
RJ45 in & out
(public for Android & PC)		 1 √ √ √ √ √
SPDIF OUT 1 √ √ √ √ √
AV in 1 √ √ √ √ √
AV out 1 √ √ √ √ √
VGA in 1 √ √ √ √ √
VGA audio in 1 √ √ √ √ √
Earephone 1 √ √ √ √ √
MIC in 1 √ √ √ √ √
YPBPR IN 1 √ √ √ √ √
TF CARD 1 √ √ √ √ √
RS232 1 √ √ √ √ √
Windows OPS Slot OPS & OPS-C Intel standard √ √ √ √ √
Hotspot Yes √ √ √ √ √
Bluetooth V 5.0 √ √ √ √ √
WiFi IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz
Or IEEE802.11an 2.4GHz		 √ √ √ √ √
Operating system
Android Version Android 11.0 √ √ √ √ √
Chipset Amlogic T982 √ √ √ √ √
CPU 4×ARM Cortex-A55 √ √ √ √ √
GPU RM Mali-G52 √ √ √ √ √
RAM DDR4 2GB (4G for Optional) √ √ √ √ √
ROM 16GB (32GB for Optional) √ √ √ √ √
Compliant with Windows; Mac; Linux; Chrome OS √ √ √ √ √
Physical specifications
Net Weight (kg±2) 45 58 80 92 110
Gross Weight (kg±2) 56 68 93 110 144
Overall size(mm)
(without bracket)		 (L*H*W) 1483.8 * 898 * 91 1706 * 1022 * 91.2 1958.8* 1154.4 * 91.2 2216 * 1314.5 * 95.5 2499.6 * 1474.2 * 95.5
Overall size(mm)
(with bracket)		 (L*H*W) 1483.8 * 898 * 121 1706 * 1022 * 121.2 1958.8*1154.4*121.2 2216 * 1314.5 * 125.5 2499.6 * 1474.2 * 137.5
Carton size(mm) (L*H*W) 1590 * 1110 * 200 1820 * 1240 * 200 2060*1370*200 2362 * 1533 * 210 2606 * 1593.1 * 200
VESA (mm) 500*400 600*400 800*400 1000*400 1200*600
Electrical
Input Voltage 90-264V AC √ √ √ √ √
Power Consumption(Standby) <0.5W √ √ √ √ √
Power Consumption Maximun< 225W Maximun< 335W Maximun< 450W Maximun< 650W Maximun< 760W
Environmental
Working
Temperature		 0℃ ~ 40℃ √ √ √ √ √
Storage
Temperature		 一20℃ ~ 60℃ √ √ √ √ √
Working Humidity 10% ~ 90% RH
Non-Condensing		 √ √ √ √ √
Storage Humidity 10% ~ 60% RH
Non-Condensing		 √ √ √ √ √
Accessories
Accessories Pen * 1pcs, Remote control *1pcs, 2m power cord *1pcs, wall mount kit;
Wireless dongle(Optional); Mobile trolley cart(Optional); Smart Pen (Optional)
